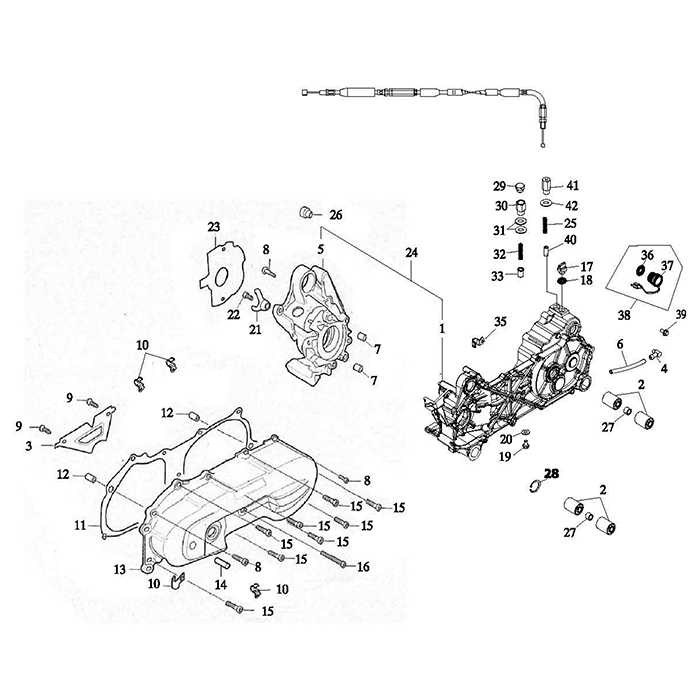

Crankcase (Adly Atv 100D)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Left Crankcase
11201-203-001
|
|||
| 2 |
Bush, 10.2*28.1*36/4
96400-102840
|
|||
| 3 |
Plate L Cover
11342-116-000
|
$5.86 | ||
| 4 |
Breather Hose Head
16610-104-00A
|
$7.03 | ||
| 5 |
Right Crankcase
11101-117-000
|
$132.37 | ||
| 6 |
Fuel Tube, 4.8*8
94400-0408200
|
|||
| 7 |
Dowel Pin, 8.5*12*16
94301-12160
|
$3.35 | ||
| 8 |
Hex Socket Bolt, 6*35
91000-06035B
|
$1.67 | ||
| 9 |
Tapping Screw Truss Head Phillips, 4*8
93903-04008K
|
$0.42 | ||
| 10 |
Clamp
11351-120-00A
|
$1.59 | ||
| 11 |
Crankcase Cover Gasket
11359-116-000
|
|||
| 12 |
Dowel Pin, 8*10*14
94301-10140
|
$1.26 | ||
| 13 |
Left Crankcase Cover
11341-201-000JA
|
|||
| 14 |
Shaft Idler, 8*32
96300-080320
|
$2.51 | ||
| 15 |
Hex Socket Bolt, 6*25
91000-06025B
|
$1.00 | ||
| 16 |
Hex Socket Bolt, 6*60
91000-06060B
|
$2.76 | ||
| 17 |
Oil Plug
15650-201-000
|
$2.68 | ||
| 18 |
Oil Ring, 11.8*2.6
91312-104-000
|
$1.34 | ||
| 19 |
Hex Washer Face Bolt, 8*12
96000-08012-10C
|
$2.01 | ||
| 20 |
Plain Washer, 8*16*2
94104-0816020
|
$1.67 |
