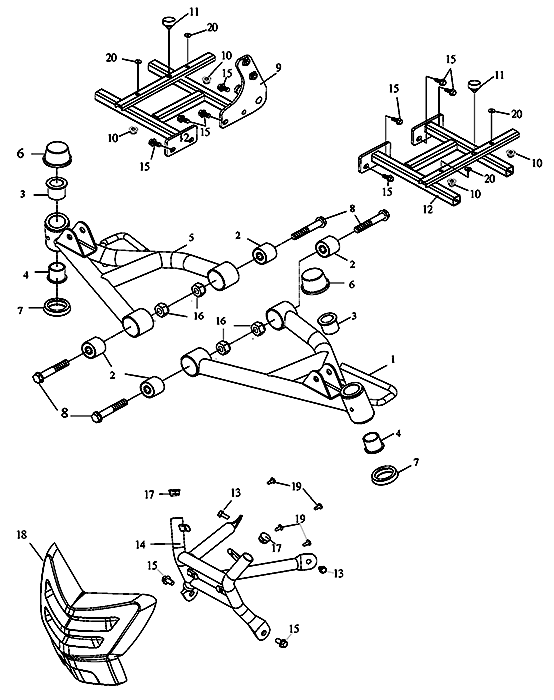

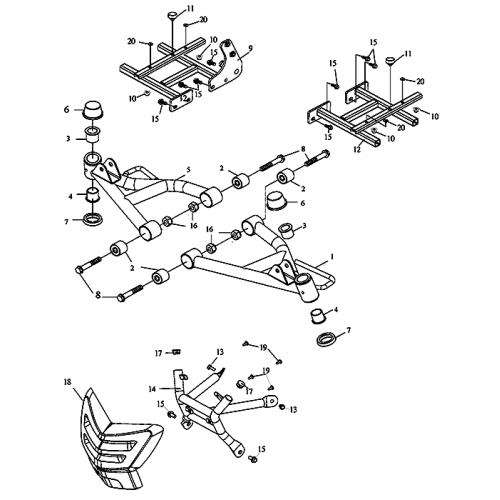

Arm | Foot Panel | Bumper (Adly Atv 100D)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Left Suspension Arm(Rev.1)
51300-145-001
|
$66.14 | ||
| 2 |
Rubber Bushing, 10*28*29
96400-102829
|
|||
| 3 |
Bush, 15.5
51201-145-000
|
|||
| 4 |
Bush, 17
51202-145-000
|
|||
| 5 |
Right Suspension Arm (Rev.1)
51200-145-001
|
$62.99 | ||
| 6 |
Waterproof Cover
51203-145-00A
|
|||
| 7 |
Dustproof Cover, ECO
51204-145-001
|
|||
| 8 |
Hex Flange Bolt, M10*50
96000-10050-14G
|
$3.97 | ||
| 9 |
R.Step Bar Comp
50717-230-000
|
|||
| 10 |
Hex Flange Nylon Nut (Green Zinc), M6
90351-06000G
|
|||
| 11 |
Rubber Damper
95011-145-000
|
|||
| 12 |
L.Step Bar Comp
50718-230-000
|
|||
| 13 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 | ||
| 14 |
Bumper
50104-229-000
|
|||
| 15 |
Hex Flange Bolt, M8*16
96000-08016-12G
|
$2.01 | ||
| 16 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 17 |
Floor Panel Rubber Cap
64330-145-000
|
$2.01 | ||
| 18 |
Bumper Cover
50107-229-000FA
|
|||
| 19 |
Tapping Screw Truss Head Phillips, 5*12
93903-05012K
|
$0.59 | ||
| 20 |
Rubber Washer, 5*22*3.2
94102-145-0A1
|
$4.01 |
